Ideal for heavy loads and high lifting heights.

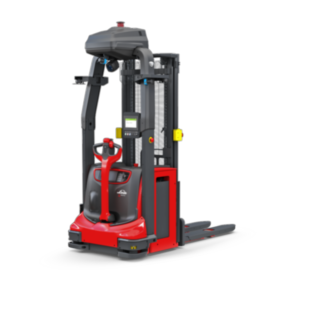

The automated L-MATIC HD k pallet stacker is ideally suited for the storage and retrieval of Euro and industrial pallets in wide-aisle warehouses and as an infeed truck for narrow-aisle applications. The truck lifts loads of up to 1,600 kilogrammes and reaches storage heights of up to 3.8 metres. The combination of powerful hardware and intelligent software offers significant performance benefits. A wide array of sensors for load and environment detection ensure high process reliability. Thanks to the comprehensive safety concept, the operator, truck, load and surroundings are reliably protected at all times. The L-MATIC HD k is available with either lead-acid or lithium-ion batteries. For smooth 24/7 operation, the truck automatically navigates to the charging station when its charge level is low.
Characteristics
Safety
The Linde L-MATIC HD k features a comprehensive, sensor-based safety package that helps protect people, trucks, transported goods and the surrounding area. Laser scanners monitor the entire working environment and ensure that obstacles and other trucks are detected in good time. If this is the case, the truck reduces its speed or stops. The monitoring areas of the scanners automatically adapt to the driving speed and the radius of the corner, allowing the truck to work in even the tightest of spaces. Acoustic and visual warning signals alert pedestrians and operators of manual trucks to potential hazards, completing the package of safety features.
- Comprehensive safety package
- All-round monitoring of the working environment
- Intelligent safety equipment with laser scanners
- Automatic speed adjustment and collision prevention
- Acoustic and visual warning systems
Handling
The L-MATIC HD k pallet stacker is designed for easy operation and seamless integration into modern intralogistics environments. Data can be entered via an intuitive touchscreen, which also displays important information such as the status of the truck, battery and system. The control software handles routing, order placement and power management. It can also be quickly connected to warehouse and ERP systems. Sensor-based pallet recognition ensures safe handling even when the full loading capacity is being used. The user-friendly commissioning software makes it possible to quickly integrate the trucks into existing work environments and adapt them to changing tasks. If required, it is possible to switch from automatic to manual mode at any time.
- Intuitive touchscreen with simple user interface
- Pallet detection for precise handling
- Intelligent routing and task control
- Interface to WMS and ERP systems
- Can be switched to manual operation
Service
The L-MATIC HD k is based on proven series-production trucks from Linde Material Handling, which means that it offers the high level of reliability that users of Linde trucks have come to expect. The extensive Linde MH service network can be called upon for quick maintenance and repair at all times. All electronic and mechanical components are easily accessible and both the drive system and the lithium-ion batteries are durable and virtually maintenance-free. The combination of an electronic diagnostics system and preventative maintenance software ensures maximum availability of the truck. A digital twin supports the safe and reliable maintenance of software and hardware.
- Reliability of a Linde production truck
- Efficient service for high truck availability
- Digital diagnostics tool for easy data access
- Easy access to all components
- Digital twin for software and hardware maintenance
Videos & Images
Technical Data
| Model | Load capacity/Load | Lift | Battery voltage/rated capacity (5h) | Turning radius | Travel speed, with/without load |
|---|---|---|---|---|---|
| L-MATIC 16 HD k | 1.6 (t) | 2844 (mm) | 24 / 375 (V)/(Ah) o. kWh | 1744 (mm) | 7.2 / 7.2 km/h |
Optional Equipment
Red warning lines
The warning light system projects red safety lines onto the floor, thereby ensuring that pedestrians keep a sufficient distance from the truck.
Advanced load detection
The sensor system detects stacked load carriers and ensures additional safety during storage and retrieval.
Linde BlueSpot
The Linde BlueSpot uses powerful LED lights to alert pedestrians to circulating trucks.
2D laser curtain
The two-dimensional laser curtain also detects objects in higher areas, such as protruding objects or overhanging loads.
